gl.vertexAttribPointer() 的步进和偏移参数

    // 同时保存顶点坐标和大小
    const verticesSizes = new Float32Array([
        0.0, 0.5, 10.0,
        -0.5, -0.5, 20.0,
        0.5, -0.5, 30.0,
    ]);
    let n = 3;
    // step1 创建缓冲区对象
    const vertexBuffer = gl.createBuffer();
    const sizeBuffer = gl.createBuffer();
    // step2 将缓冲区对象绑定到目标
    gl.bindBuffer(gl.ARRAY_BUFFER, vertexBuffer);
    gl.bindBuffer(gl.ARRAY_BUFFER, sizeBuffer);
    //step3 向缓冲区写入数据
    gl.bufferData(gl.ARRAY_BUFFER, verticesSizes, gl.STATIC_DRAW);

    //step4 将缓冲区分配给attribute变量,这个2指两个点是一个坐标
    const a_PointSize = gl.getAttribLocation(gl.program, 'a_PointSize');
    const a_Position = gl.getAttribLocation(gl.program, 'a_Position');
    const FSIZE = verticesSizes.BYTES_PER_ELEMENT;

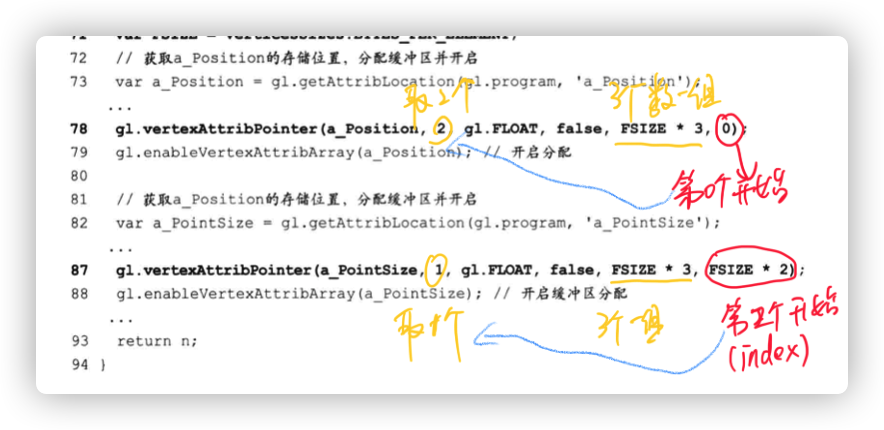

    // 重点在这里!!!

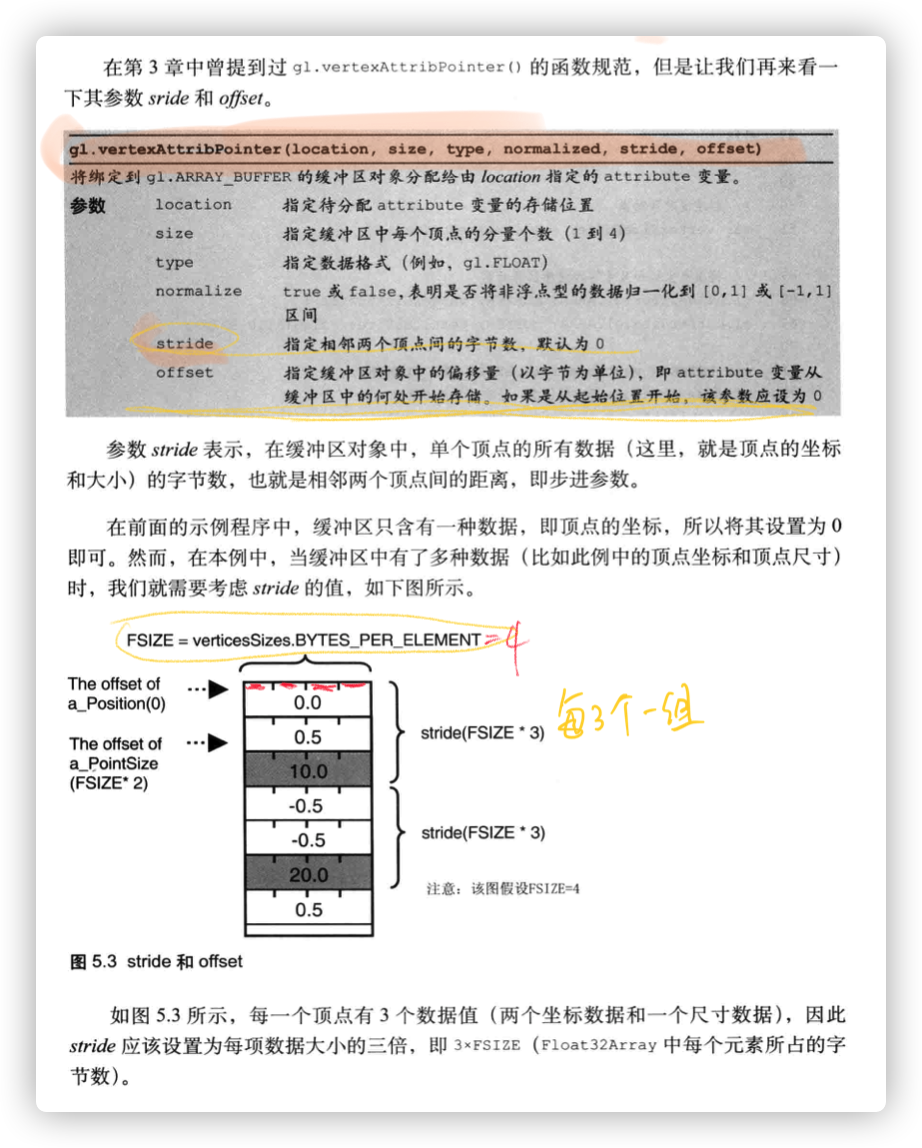

    gl.vertexAttribPointer(a_Position, 2, gl.FLOAT, false, FSIZE * 3, 0);

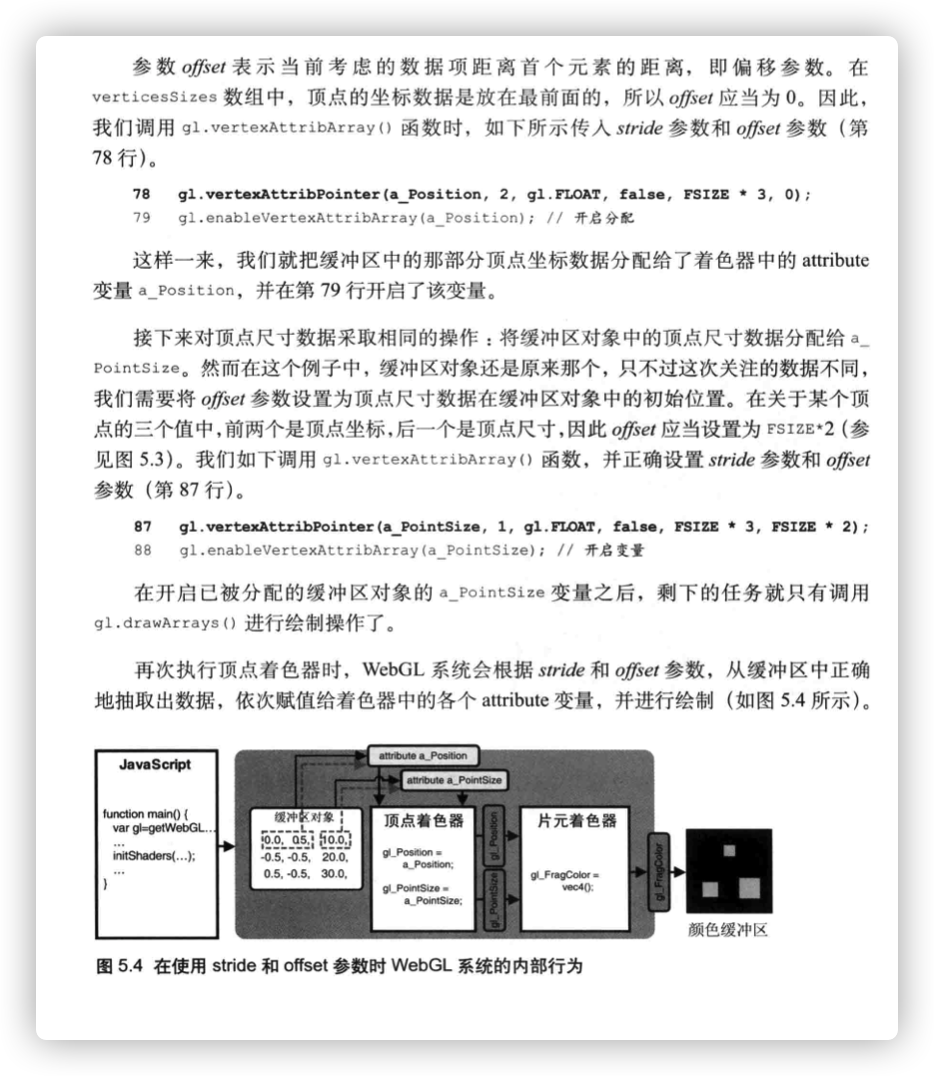

    gl.vertexAttribPointer(a_PointSize, 1, gl.FLOAT, false, FSIZE * 3, FSIZE * 2);
    // step5 开启attribute变量。
    gl.enableVertexAttribArray(a_Position);
    gl.enableVertexAttribArray(a_PointSize);
    return n;
